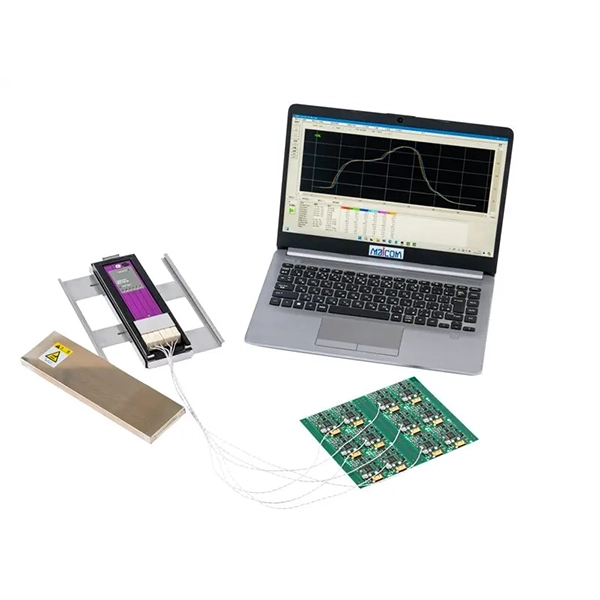

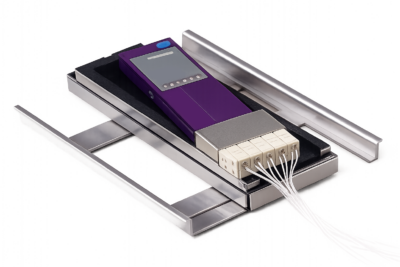

TMR-1 System Program
- Evaluate and control reflow process from different angles, not only temperature control of a reflow oven.
- The temperature profile prediction function helps smoothly examine a profile.
Technical Specifications
| Measuring temp. range | 0~500 °C *1 |
| Max. measuring time | Approx. 10 hours *1 *2 |
| Sampling time (sec.) | 0.05 · 0.1 · 0.2 · 0.5 · 1.0 · 2.0 · 4.0 · 8.0 (Arbitrary set up possible) |
| Temp. accuracy | ± 1 °C *3 |
| Measuring points | 1~6 point |
| Input | Thermocouple JIS-K 1kΩ max. (φ 0.1 mm under 10m) |
| Cooling fun | Model: RCF-3 (100~240V) 240 (D) x 350 (W) x 160 (H) mm |
| Power supply | AAA batteries, Manganese batteries, Alkaline battery, Ni-MH battery |
| Data Transmission Method | USB |
| Outer dimensions | Main unit: 170 (D) x 50 (W) x 18 (H) mm / Heat resistant case for RCX-1: 245 (D) x 65 (W) x 25 (H) mm |
| Weight | Approx. 550g (Conveyor attachment system is not included.) |
- Simultaneously display Profile & Data of Temperature, Wind Speed, O₂ Concentration on the same screen.
- Profile Support function offers easy profile creation.
- TPD files, the file format of TAM series, are viewable.

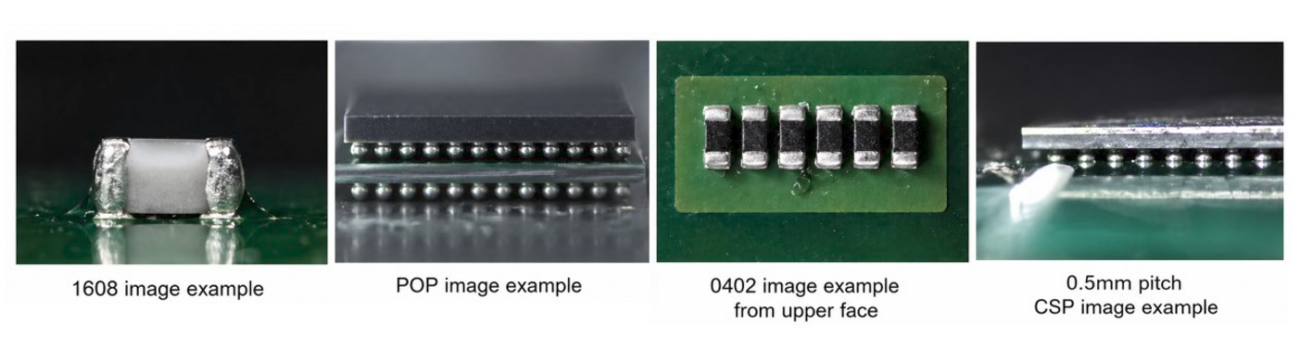

2)RCX-C Reflow Checker Memory Unit with Observation Monitor
- A Removal Camera is directly mounted on a PC board, which offers viewing from various points.
- Monitoring from upper, side & diagonal are also possible with a Imaging Mirror.
Technical Specifications
| Max. measuring time | Video recording for approx. 10 minutes *1 |
| Camera number of pixels | 300 thousand pixels |
| Camera field size | Approx. 4 (W) x 3 (H) mm (WD10 ± 2mm) ~ Approx. 55 (W) x 41 (H) mm (WD300 ± 2mm) |
| Lighting | LED |
| Power supply | Supplied from RCM-S main unit, Ni-MH battery (AAA battery x 3pcs.) |
| Outer dimensions | Heat resistant case for main unit: 360 (D) x 65 (W) x 25 (H) mm / Heat resistant case for camera unit: 84 (D) x 44 (W) x 17.5 (H) mm |
| Data transmission method | Video: USB |
| Weight | RCM-S main unit + Camera unit: Approx 800g (Conveyor attachment system is not included.) / Camera unit: Approx. 150g (Conveyor attachment system is not included.) |
- The measuring temperature range and the maximum measuring time are time in which heat resistance is not considered, and they cannot be measured in the reflow oven.
- Manganese batteries and alkaline batteries are not available.

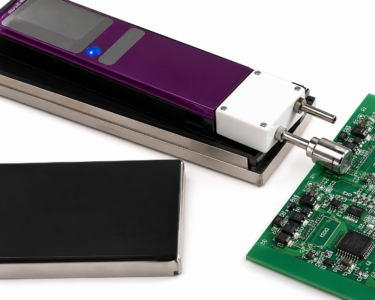

3)RCX-O Reflow Checker Memory Unit with O₂ Concentration Monitor
A module to measure O₂ concentration
- Measure O₂ concentration at important points on a PC board
- Take measurements under the same reflow conditions as during production
- The measurement range is selectable
(50 ppm to 5,000 ppm or 1,000 ppm to 10,000 ppm)
Technical Specifications
| Max. measuring time | Ni-MH battery Approx. 40 minutes *1 |
| Sampling time (sec.) | 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0, 8.0 Arbitrary setup possible Synchronized with RCM-S main unit. |
| Oxygen measuring principle | Zirconia limiting current method |
| Oxygen measuring range | 50ppm~5000ppm or 1000ppm~10000ppm |
| Oxygen measurement accuracy | 50 ppm ~ 1000 ppm ±5%FS / 1000 ppm ~ 5000 ppm ±10%FS 1000 ppm ~ 5000 ppm ±5%FS |
| Power supply | Supplied from RCM-S main unit, Ni-MH battery (AAA battery x 3pcs.) |
| Outer dimensions | Main unit: 336 (D) x 50 (W) x 18 (H) mm (with RCM-S main unit) Heat resistant case: 370 (D) x 65 (W) x 25 (H) mm |
| Weight | Approx. 950g (Conveyor attachment system is not included.) |

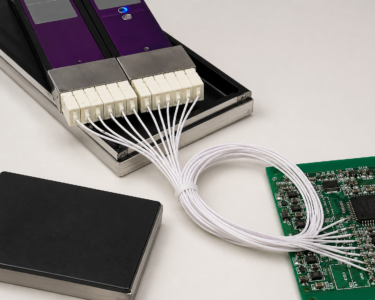

4)RCX-T Reflow Checker Memory Unit with additional 6 channels
- Add RCX-T Reflow Checker Memory Unit to RCX-S Reflow Checker Memory Unit providing 12 points measurement.
- Can be used as 12 channels to study profiles, trial production and evaluation, for normal production, employed as 6 channels.
Technical Specifications
| Measuring temp. range | 0 ~ 500°C *1 |
| Max. measuring time | Approx. 5 hours *1 *2 |
| Sampling time (sec) | 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0, 8.0 Arbitrary setup possible Synchronized with RCM-S main unit. |
| Temp. accuracy | ±1°C *3 |
| Measuring points | 1 ~ 12 points |
| Input | Thermocouple JIS-K 1kΩ max. (φ 0.1 mm under 10m) |
| Power supply | Supplied from RCM-S main unit AAA batteries, Manganese batteries, Alkaline battery, Ni-MH battery |
| Outer dimensions | Main unit: 180 (D) x 100 (W) x 18 (H) mm (with RCM-S main unit) Heat resistant case: 250 (D) x 114 (W) x 25 (H) mm |
| Weight | Approx. 1000g (Conveyor attachment system is not included.) |
5)RCX-R Reflow Checker Memory Unit With Wireless LAN Connection
Wireless LAN makes it possible to show you the temperature profile in real time.
- You can change the device settings while checking the temperature profile.
- Check the temperature profile in real time on a PC.
- Increase efficiency of studying temperature profiles.
- The built-in memory function avoids losing data.
- Complies with wireless LAN standards.
Technical Specifications
| Wireless LAN | Protocol: 802.11b/g/n / Security: WPA/WPA2 / Encryption: WEP/TKIP/AES |
| Power supply | Supplied from RCM-S main unit |
| Outer dimensions | Main unit: 195 (D) x 40 (W) x 13 (H) mm Heat resistant case: 370 (D) x 65 (W) x 25 (H) mm |
| Weight | Approx. 100g (RCM-S main unit is not included.) |
6)RCX-SV Reflow Checker Memory Unit with Substrate Vibration Monitor
Two vibration modules on a PC board, measuring in a reflow oven.
- Check the status of a PC board when moving from machine to machine.
- Analyze defective soldering due to vibration.
- Measure the vibration from the entrance to exit of a reflow oven.
- How variances in wind speed affects vibration.
Technical Specifications
| Max. measuring time | Approx. 3 hours (Ni-MH battery) |
| Sampling time (sec.) | 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0, 8.0 Arbitrarily set up possible (synchronized to RCM-S) |
| Measuring points | 2 points |
| Measuring range / Resolution / Accuracy | ±2.0g (1.0 g = 9.80665 m/s²) / 0.001g (1.0 g = 9.80665 m/s²) |
| Measurement accuracy | ±0.005g (1.0 g = 9.80665 m/s²) |
| Power supply | Supplied from RCM-S main unit, AAA batteries x 3pcs. |
| Outer dimensions | Main unit: 221 (D) x 50 (W) x 18 (H) mm (with RCM-S main unit, Sensors are not included) Sensor: 45 (D) x 35 (W) x 19 (H) mm Heat resistant case: 360 (D) x 65 (W) x 25 (H) mm |
| Weight | Approx. 800g including RCM-S main unit & batteries, Conveyor attachment system is not included. |
7)RCX-W Reflow Checker Memory Unit with Air Velocity Monitor
A module for Wind Speed measurement.
- A wind speed sensor mounted on a PC board measures wind speed of the important point.
- Take measurement in the same reflow conditions as that of during production.
- Measure wind speed from upper or side directions.
Technical Specifications
| Sampling Time (sec.) | 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0, 8.0 * Arbitrarily set up possible |
| Wind speed measuring range | 0.1 ~ 5 m/s |
| Wind speed measurement accuracy | ±(5% + 0.1 m/s) of the indicated value |
| Power supply | Supplied from RCM-S main unit, AAA batteries, Manganese batteries, Alkaline battery, Ni-MH battery |
| Outer dimensions | Main unit (w/o Heat resistant case): 220 (D) x 50 (W) x 18 (H) mm (with RCM-S main unit) Heat resistant case: 370 (D) x 65 (W) x 25 (H) mm |
| Data transmission method | USB |
| Weight | Approx. 800g (Conveyor Attachment System is not included.) |
8)RCP-200 Reflow
- High Heat Resistance, Excellent Performance and Directly Transfer Data to a PC.
- The GOLD color surface reduces radiant heat, increasing heat resistance.
- Exclusive Cooling Unit effectively cools down a memory unit and Convenient Storage Case available.
- Proprietary Heat Resistant Micro Connector makes it possible to measure at 6 points.
Technical Specifications
| Measuring temp. range | 0°C ~ 300°C |
| Input | Thermocouple JIS-K 110Ω max. |
| Max. measuring time | Approx. 90 minutes (sampling time: 0.5 sec.) Approx. 15 minutes (sampling time: 0.05 sec.) |
| Power supply | Lithium ion battery |
| Sampling time (sec.) | 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0, 8.0 (Arbitrary setup possible) |
| Data transmission method | USB |
| Temp. accuracy | ±2°C |
| Outer dimensions | 200 (D) x 50 (W) x 15 (H) mm |
| Measuring points | 1 ~ 6 point |
| Weight | Approx. 400g |
9)TL-12X Thermo Logger
- Optional Heat-Resistant Jackets designed for high-temperature and long-term use.
- Available for a painting tunnel oven, drying oven and etc.
- Combined with RCM-S, the suitable Heat-Resistant Jacket is selectable according to the following table.
Technical Specifications
| Memory unit | RCM-S |
| Measuring temp. range | 0 ~ 500 °C *1 |
| Max. measuring time | Approx. 10 hours *1 *2 |
| Sampling time (sec.) | 0.05 · 0.1 · 0.2 · 0.5 · 1.0 · 2.0 · 4.0 · 8.0 (Arbitrary set up possible) |
| Temp. accuracy | ±1°C *3 |
| Measuring points | 1 ~ 6 point |
| Input | Thermocouple JIS-K 1kΩ max. (φ 0.1 mm under 10m) |
| Power supply | AAA batteries, Manganese batteries, Alkaline battery, Ni-MH battery |
| Data Transmission Method | USB |
| Outer dimensions | Main unit: 170 (D) x 50 (W) x 18 (H) mm |
